X-59: NASA's 'quiet' supersonic plane revealed

NASA's new research aircraft called the X-59 debuted Friday.The plan is for the X-59 to take off for the first time this year.

NASA's new research aircraft called the X-59 debuted Friday.The plan is for the X-59 to take off for the first time this year. (Senior Airman Christine Groening, NASA)


2 photos
Save Story
Leer en español

Estimated read time: 4-5 minutes

ATLANTA — If you've heard a sonic boom recently, you probably remember it. The loud, explosion-like bang – caused by a plane flying faster than the speed of sound – can be startling, and even crack windows.

Sonic booms are part of the reason why there are no supersonic passenger planes flying today, and one of the limiting factors to the success of Concorde, which last flew in 2003.

Now, NASA is working to change regulations by transforming the boom into a "thump," paving the way for a new generation of quieter supersonic aircraft. The agency is doing so through a program called Quesst, which is the result of decades of research and is centered around a new aircraft called the X-59, which debuted Friday.

Distant thunder

The X-59 is the latest in a series of experimental planes which include the X-1, which in 1947 became the first manned aircraft to exceed the speed of sound, and the X-15, which still holds the record for the fastest ever manned flight, set in 1967 at Mach 6.7.

The new craft was designed and built by prime contractor Lockheed Martin Skunk Works in Palmdale, California, under a $247.5 million NASA contract. With factory rollout now complete, the X-59 will now undergo integrated systems testing, engine runs, and taxi testing in preparation for its first flight. It's set to take off for the first time later this year, ahead of its first quiet supersonic flight.

"NASA's X-59 will help change the way we travel, bringing us closer together in much less time," said NASA deputy administrator Pam Melroy in a statement.

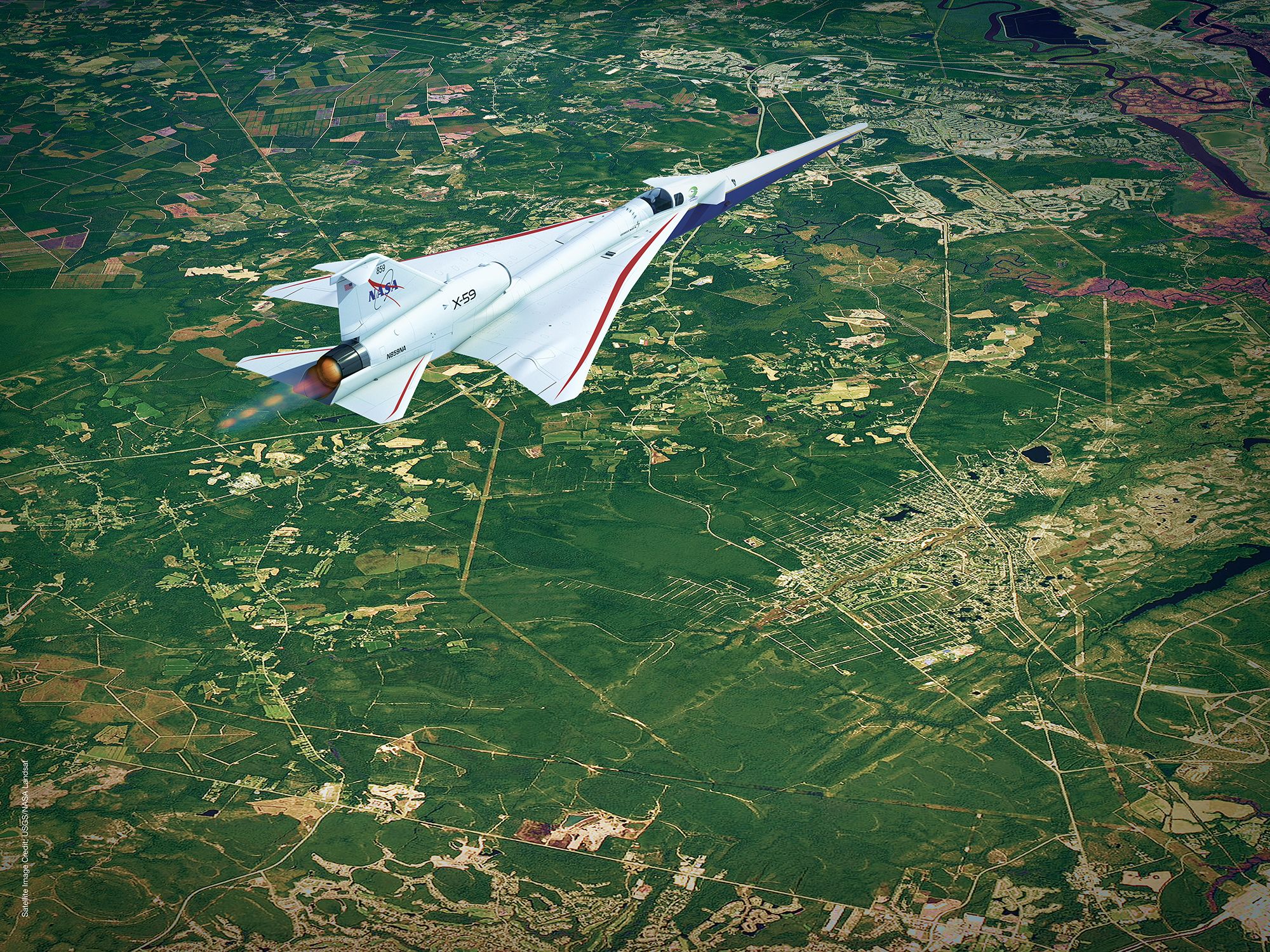

How the X-59 could look in flight.
How the X-59 could look in flight. (Photo: NASA)

"It will be significantly quieter than Concorde or any other supersonic aircraft that exist today," Craig Nickol, senior adviser at NASA headquarters, told CNN in 2022. "It's extremely long and thin: It's almost 100 feet long, but has a wingspan of only about 29 feet. The nose is a distinguishing feature on this aircraft: it's about a third of the length."

The sleek shape plays a key role in making the aircraft much quieter when traveling supersonically.

But how does a sonic boom happen? When an aircraft travels at subsonic speeds, the sound waves that it normally creates can travel in all directions; at supersonic speeds, however, the aircraft will leave its own sound behind and the sound waves will compress and coalesce into a single shockwave that originates at the nose and ends at the tail.

When this highly compressed shockwave meets a human ear, it produces a loud boom, which does not occur when the plane breaks the sound barrier, but is rather a continuous effect that can be heard by anyone in a cone-shaped area beneath the plane, as long as it exceeds the speed of sound.


NASA's X-59 will help change the way we travel, bringing us closer together in much less time.

–Pam Melroy, NASA


The X-59's shape is designed to prevent the shockwaves from coalescing together. Instead, they spread out, with the help of strategically placed aerodynamic surfaces. The lone engine is also at the top rather than the bottom of the plane, to keep a smooth lower profile that prevents shockwaves from reaching the ground.

As a result, NASA believes the X-59 will produce just 75 decibels of sound when traveling at supersonic speeds, compared to Concorde's 105 decibels.

"What that means is that this aircraft may sound like distant thunder on the horizon, or like someone shutting a car door around the corner," Nickol says.

Changing regulations

The expectation is that the X-59 will fly at 1.4 times the speed of sound, or 925 mph.

The crucial part of the program will start later in 2024, when a series of test flights will be performed over half a dozen residential communities across the US, selected to offer a diverse mix of geographic and atmospheric conditions.

Once the X-59 is flown over the selected areas, NASA will engage with the communities on the ground to gauge their response to the noise.

The data gathered in this way will then be presented to the U.S. Federal Aviation Administration and international regulators.

A new generation

NASA believes that a change in regulations would open up the skies for a new generation of supersonic aircraft, allowed to fly over routes that aren't permitted now, such as New York to Los Angeles, and cutting flight time roughly in half.

We don't know, however, what those aircraft will look like and who will build them, because the X-59 is not a prototype but merely a technology demonstrator.

"Any future design of a low boom commercial aircraft for supersonic flight will certainly be different than this, although some of the design elements could translate directly over," said Nickol, pointing at the extended nose, some of the flight control systems, and the X-59's unique eXternal Vision System, which provides the pilot with high-definition displays showing what's ahead, in the absence of an actual forward-facing window due to the aircraft's streamlined nose.

Several companies are currently developing supersonic passenger aircraft and plan to fly them within a decade or less, including Hermeus, Boom and Spike. However, it's doubtful that any of them will be able to take advantage of the findings of the Quesst program, which will likely inform the next generation of supersonic aircraft.
